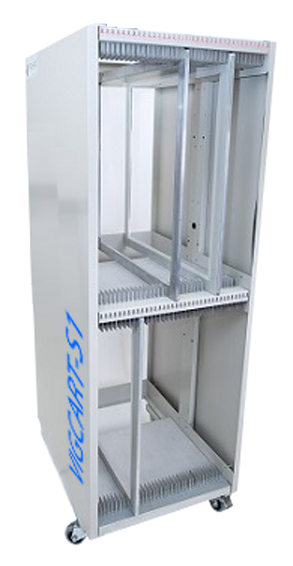

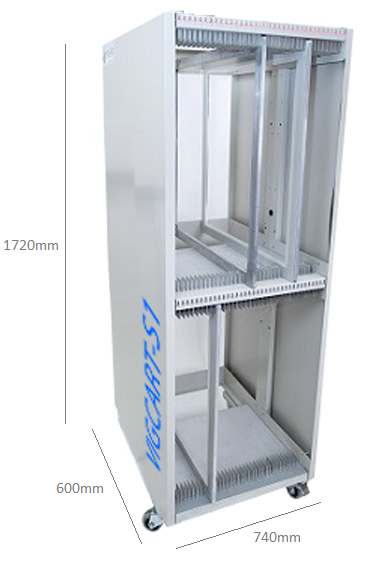

VigCart-S1 is a Fully Wireless, portable PCB Stencil Storage Solution.

It can hold two rows of stencils. Each row can be configured for 12 standard-with stencils, or 32 space-saver stencils.

The product is designed to RoHS specifications and minimizes space and material usage in its construction.


Each location has a sensor to detect when stencils are placed or removed, as well as an LED to indicate where stencils are located.

To add a stencil to the rack, the customer either scans or enters the stencil part number and adds the stencil to any available location.

VigCart-S1 detects where the stencil was placed, and stores this for future retrieval.

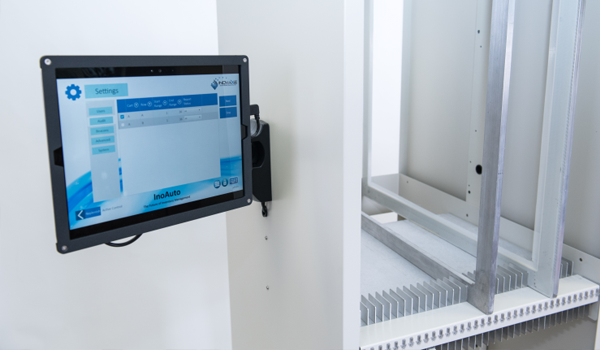

When a stencil is required for a job, the customer can browse for the correct stencil number(s) or import a pick list containing the required stencil part number(s).

The stencil requirement can also be sent automatically through VigCart’s flexible API.

VigCart-S1 will illuminate the location(s) of the required stencil(s) and the customer can simply remove the stencil(s) at the indicated location(s).

If an incorrect stencil is removed, the picking process is shut down and the Smart Stencil Rack indicates that an unauthorized pick has occurred.


VigCart-S1 has been designed to increase the speed of storing and retrieving solder stencils.

Each stencil can be stored or retrieved in under 5 seconds.

Operators do not have to spend time searching for the correct location to put their stencil away, as they simply place the stencil into any available slot.

When retrieving stencils, we quickly light up the correct location, so the operator does not have to spend time searching for and verifying the location to pull from.


VigCart-S1 is also designed to decrease the space required to store stencils.

Each slot is designed to perfectly fit the standard stencil sizes, eliminating any wasted space.

DataFill is a powerful server software to control the whole VigCart range.

You only require 1 DataFill to control as many VigCart shelf units as you need.

Any number of Windows clients can access and control data.
